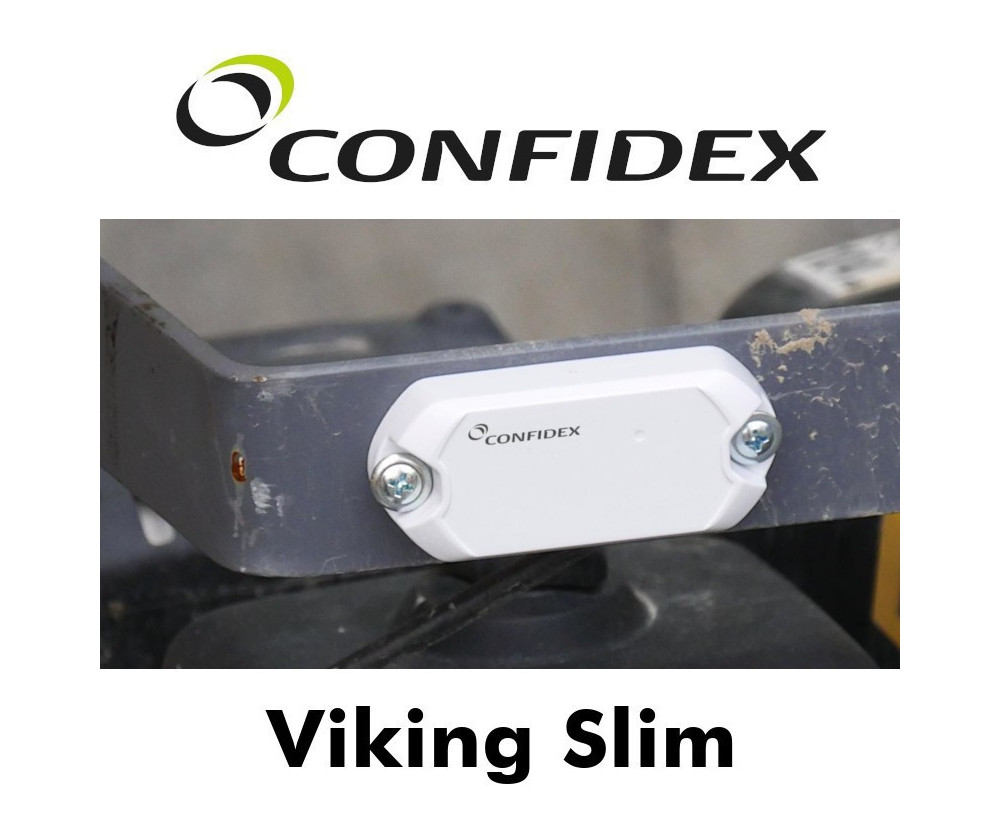

Confidex Viking Slim - Bluetooth® Low Energy Beacon IP67

Beacon Bluetooth® Low Energy by Confidex is designed for industrial environments. Thanks to the integrated temperature sensor, it is a valid tool for industrial production control, supply chain and asset control.

The robust casing makes this Beacon suitable for industrial environments and protected from water and dust infiltration.

The activation and configuration of the Confidex Viking Slim have to be done via the Android Confidex Runestone application. An Android NFC Smartphone is needed.

Electrical characteristics

• Version: Bluetooth® 5.1
• NFC: 13.56 MHz ISO 14443A
• ISM frequency: 2.45 GHz
• Module: Nordic NRF52832
• Memory: 512 kb Flash, 64 kb RAM
• NFC interface for quick configuration
• Integrated temperature sensor (other sensors available on request)
• Sensitivity: -96 dBm
• Reading distance: up to 100 m (distance subject to environmental characteristics)
• Replaceable CR2477 (1000mAh) coin battery
• Application: on any surface, even metallic

Mechanical characteristics

• Dimensions: 74,5 x 32 x 14,5 mm
• Casing material: Polycarbonate and ASA (15% recycled)
• Weight: 25 g

Environmental resistance

• Operating temperature: -20°C to +60°C / -4°F to +140°F
• Water resistance: IP67
• Estimated duration: up to 4 years (in relation to use)

Chemical resistance

No physical or performance modification in:

• 168 hours of engine oil exposure
• 48 hours of exposure to salt water (10% salinity)
• 48 hours of exposure to sulfuric acid (10%, pH 2)
• 48 hours of exposure to sodium hydroxide (NaOH 10%, pH 13)

Furthermore, good resistance to moderate concentrations of acids, alcohols, alkalis and detergents is found.

Acetone and sodium hydroxide should be avoided.

Eddystone

Confidex Viking supports the following Eddystone protocols.

• Eddystone-UID
• Eddystone-URL
• Eddystone-TLM (transmits telemetry information, such as temperature)
• Eddystone-EID

For more information on Eddystone, see the Google Beacon platform and the Eddystone Wikipedia page

iBeacon

Confidex Viking also supports the iBeacon protocol (UUID, Major and Minor).

For more information on iBeacon, refer to Apple's documentation.

Installation

It is recommended to use mechanical fixing in any application that includes the risk of high mechanical stress or low temperature when fixing the Beacon.

M5 type screws, or plastic or metal cable ties with a maximum width of 4 mm can be used.
