NFC Garment Tags NTAG424 DNA in flexible PET 25mm

The image is for illustrative purposes only and may not fully reflect the characteristics of the actual product.

Volume discounts

Quantity	Unit discount	Unit price
50	9.17%	€0.99
100	24.77%	€0.82
500	30.27%	€0.76
1000	36.70%	€0.69
5000	41.28%	€0.64

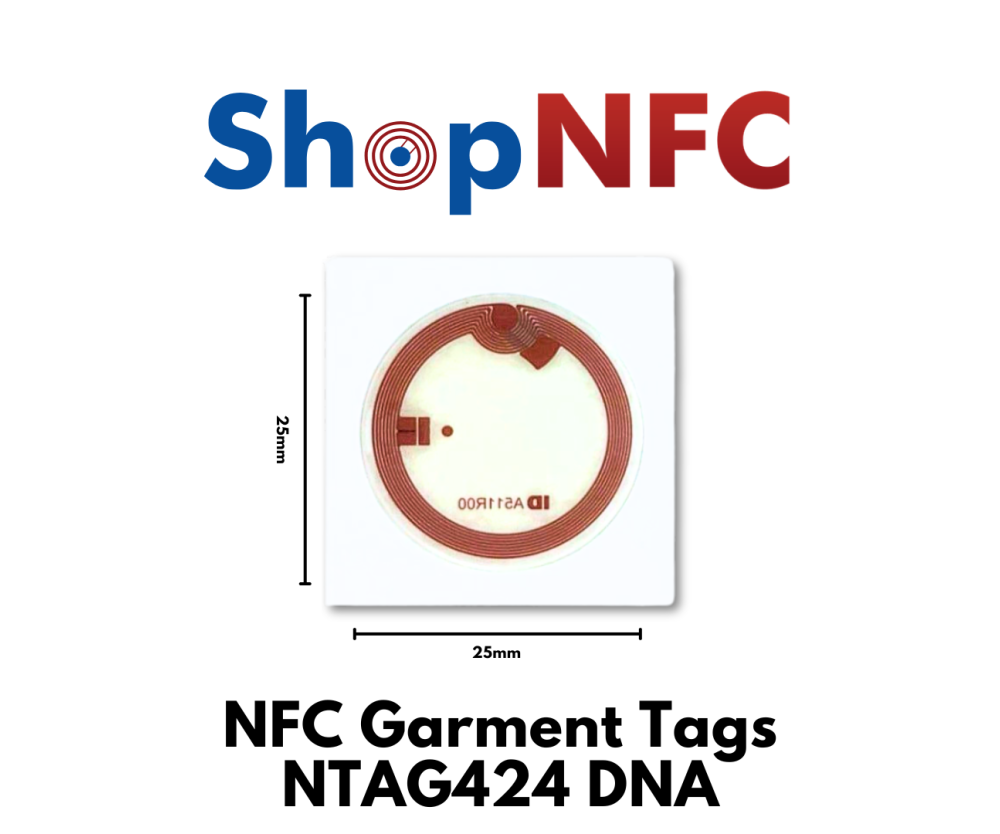

NFC Garment Tags NTAG424 DNA in flexible PET 25mm

Name: NFC Garment Tags NTAG424 DNA in flexible PET 25mm
SKU: I00PADNE9023
Price: 0.64 EUR
Availability: InStock

€1.09

In Stock

Robust and flexible NFC Tag, with copper antenna and NTAG424 DNA chip. Ideal for authenticity applications in clothing.

➡️ Need them already encoded with anti-counterfeiting URL? Try tag.link DNA

Reference I00PADNE9023

Secure Payments
Delivery policy
Refund policy

Volume discounts

Quantity	Unit discount	Unit price
50	9.17%	€0.99
100	24.77%	€0.82
500	30.27%	€0.76
1000	36.70%	€0.69
5000	41.28%	€0.64

This NFC tag is made of flexible PET, with multiple internal protective layers to withstand domestic washing machine washes (tested up to 100 cycles). It also features a copper antenna, which provides better read range than aluminum. The back is adhesive (non-permanent): for clothing applications, it must be integrated into a lining or under a patch.

With only 25 mm in diameter and 0.4 mm in thickness, this tag hosts an NTAG424 chip, compatible with all NFC-enabled smartphones and equipped with "rolling code" to certify the authenticity of the object to which it is applied.

Technical specifications

NFC chip: NXP NTAG424
Operating frequency: 13.56 MHz
Standard: ISO/IEC 14443A
Antenna size: ø 23 mm
Tag size: ø 25 mm
Thickness: 440 μm
Operating temperature: -20°C to 70°C
These Tags are packaged in reels of 2000 pieces. The Tag faces inward.

Application Areas

Retail
Brand Protection
Customer Experiences
Product Authentication

Benefits of the NFC Garment Tag

Flexible structure
Enhanced environmental resistance
Good for wash & wear applications

NXP NTAG424 DNA chip

The NTAG 424 DNA chip sets a new standard in NFC and secure IoT applications. The new chip generation offers state-of-the-art security and privacy protection features. For this purpose, the chip is made with attack-resistant certified silicon.

The NTAG 424 DNA chip is designed to support operations protected by AES-128 encryption, including a new SUN (Secure Unique NFC message) authentication mechanism, as well as the protection of sensitive data with encrypted access permissions. These features allow advanced product and content protection, as well as secure and unique user experiences in real time.

What is the SUN message

The Secure Unique NFC function generates a unique and secure authentication code whenever the Tag is read. With the SUN function, an NDEF message (readable by any NFC smarpthones) is generated, using an encryption algorithm that includes: URL, UID, counter scan, and AES key.

SUN message - NTAG DNA

Being also connected to the scan counter, each time the Tag is read, it generates a different string. In this way, the content is protected from cloning.

It is interesting to note that this increase in security is at the same time a simplification of the approach to the end user, which does not need to download any specific application to verify the authenticity of the Tag (and the content linked to it).

Data sheet
