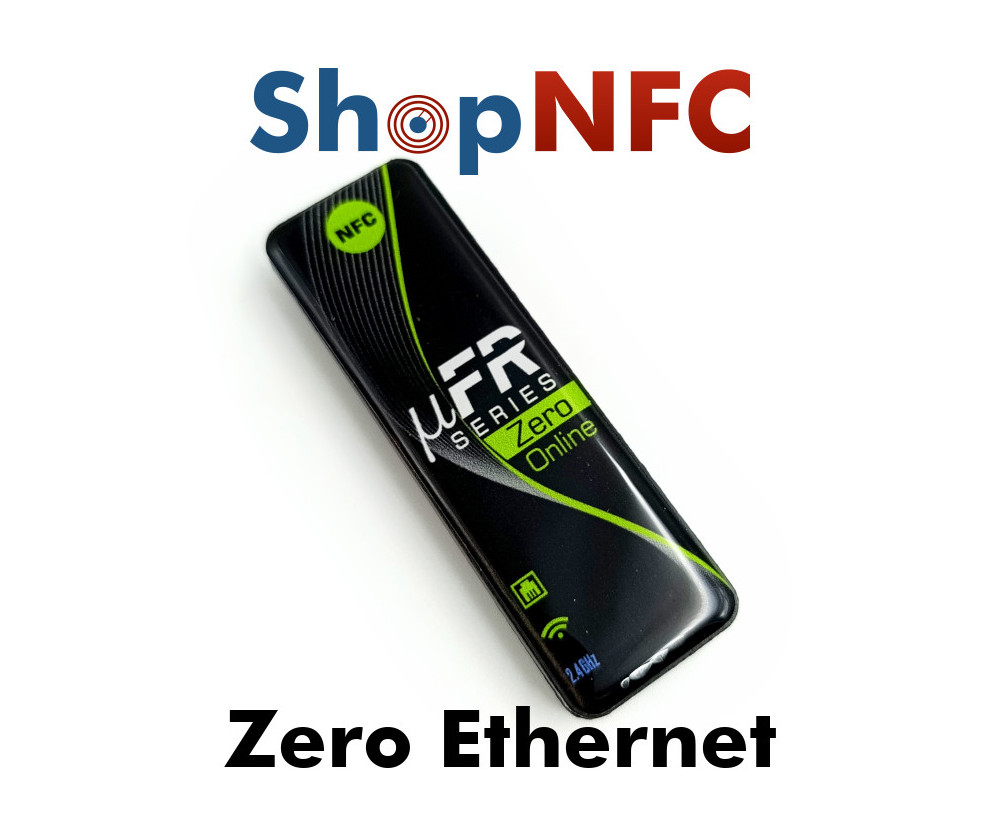

uFR Zero Online - Multi-ISO NFC Reader/Writer with Wi-Fi, BLE, Ethernet
€144.00
Multi-ISO NFC reader with WiFi, Ethernet and Bluetooth connectivity. It supports both ISO 14443 and 15693 tags such as NTAG and ICODE. Free SDK available.
LS-ZERO-ETH
Secure Payments
Delivery policy
Refund policy
The wireless reader µFR Zero Online is a multi-platform NFC reader/writer, which can be used with all major operating systems and on the most common hardware platforms. It supports HTTP POST, TCP/IP and UDP protocols as well as Serial, HID, protocols.
Free SDK libraries are available and compatible for all D-Logic readers (such as the previous µFR Nano Online).
Main benefits
- Sending HTTP POST requests
- Sending UDP broadcasts
- Wi-Fi repeater
- TCP/IP communication
- Keyboard input via HID mode.
- Write code directly inside the device. Make device standalone.
- Use device on a remote location (no PC host required).
Useful links
- Android app (for testing)
- Video Tutorials
- Available free softwares
- Software repository
- D-Logic official website
| Product Series | μFR ZERO ONLINE |
| MODEL | μFR Zero Online Ethernet |
| Size H x W x D (mm & inches) | 84 x 25 x 8mm 3.31 x 0.98 x 0.31 inches |
| Net Weight (g) | |
| ISO15693 Reading Range (mm & inch) | 100 mm 3.94" |
| ISO14443 Reading Range (mm & inch) | 75 mm 2.95" |
| Data & Power Connection Interface | USB (CDC, HID, NCP) UART (optional) SPI (optional) Wi-Fi BLE Ethernet GPIO (optional) |
| Embedded Signalization | RGB LED, Beeper |
| Advanced Features | Anti-collision Dynamic Power Control Low Power Card Detection Battery Charger |
| Optional Upgrades | RTC EEPROM SAM Card Slot Access Control Module Cryptographic Coprocessor/Accelerator RGB LED Ring Display OLED Display Touch Button Micro SD Card Slot F-RAM |
| Operating Frequency | 13.56 MHz |
| Supported Standards | ISO14443 A & B ISO15693 ISO7816 |
| Communication Speed | 6.62/26.48/106/212/425 kbps |
| Operating Current | 180-500 mA |
| Sleep Current | <50 µA |
| Operating Voltage | 5 V |
| Operating Temperature | |
| Encryption | Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA |
| ESP32 S3 Built-in functions | Cryptographic hardware acceleration: AES128/256 (FIPS PUB 197) Hash (FIPS PUB 180-4) RSA Random Number Generator (RNG) HMAC Digital signature |
| Supported Tag Type | ICODE® (SLI, SLIX SLIX 2, SLIX-L, SLIX-S, DNA, ILT, ILT-M) MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR). |
| Free SDK Projects | Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE |
| Supported OS | Microsoft® Windows™ Linux® macOS Android iOS |
| Supported Platforms | Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs |
| Warranty | 2 years + Extended Warranty |
Data sheet
- NFC Standard
- ISO/IEC 14443-A, 15693
- Commodity code (HS)
- 8471800000
- Country of origin
- Serbia
