€0.09
Call us: (+39) 039 894 61 16 - Contact us
The image is for illustrative purposes only and may not fully reflect the characteristics of the actual product.
Volume discounts
| Quantity | Unit discount | Unit price |
|---|---|---|
| 50 | 10.00% | €0.53 |
| 100 | 20.00% | €0.47 |
| 500 | 30.00% | €0.41 |
| 1000 | 50.80% | €0.29 |
| 5000 | 57.60% | €0.25 |

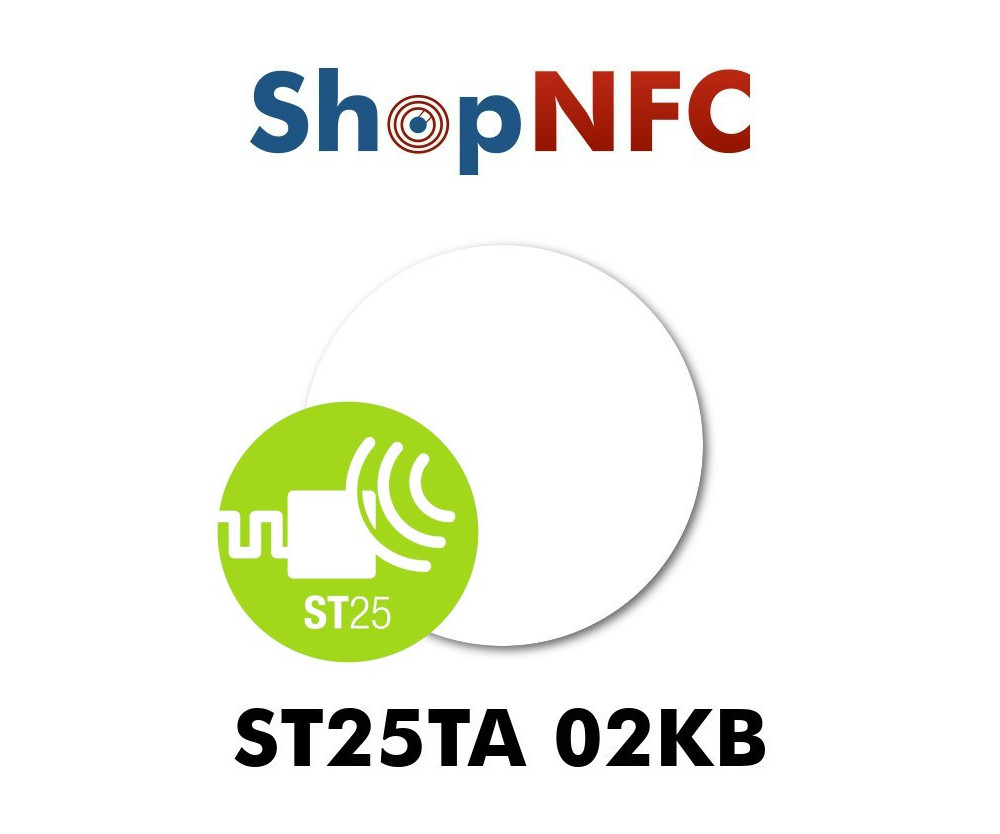

NFC Stickers ST25TA02KB Round ø29mm
€0.59
ST25TA series chip. Supports: password protection both for read and write; up to 1 million read/write cycles and 200 years of data retention.
ST-25TA02-29
Secure Payments
Delivery policy
Refund policy
Volume discounts
| Quantity | Unit discount | Unit price |
|---|---|---|
| 50 | 10.00% | €0.53 |
| 100 | 20.00% | €0.47 |
| 500 | 30.00% | €0.41 |
| 1000 | 50.80% | €0.29 |
| 5000 | 57.60% | €0.25 |
For personalized products the artwork can be uploaded here (login necessary).
It can also be uploaded later, from the order details.
The ST25TA02KB NFC chip is produced by STMicroelectronics. Compared to the more common NTAG, ST25TA chip has a longer data retention, a greater read/write endurance, and supports password protection for both in reading and writing mode.
Available Apps
To encode these NFC Tags, we recommend:
- ST25 NFC Tap (Android 5.0+)
- NFC Tap (iOS 11+, iPhone 7+)
ST25TA02KB NFC Chip Technical Specifications
- ISO/IEC 14443 Type A
- NFC Forum Type 4 Tag
- Operating frequency: 13.56 MHz
- 7-byte unique identifier (UID)
- Available memory: 2 kbit / 256 byte
- 128-bit password protection both for read and write memory
- 20-bit scan counter
- 200 years data retention
- 1 million write erase cycles
- TruST25™ digital signature
Sticker Specifics
- Diameter: 29 mm (white sticker)
- Overall thickness: 120 μm ± 15µm
- Operating temperature: from -25°C to 70°C / from -13°F to 158°F
- Material: PP, Aluminium
Please note: these Tags don't work on metal surfaces.
Custom printing
NFC Tags are white.
Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.
Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.
Data sheet
- NFC Chip
- ST25TA02KB
- NFC Standard
- ISO/IEC 14443-A
- NFC Forum
- Type 4
- UID (Unique ID)
- 7 bytes
- Available memory
- 256 bytes
- Communication rate
- 106 kbit/s
- Read/Write endurance
- 1 million cycles
- Data retention
- 200 years
- Password Protection
- Supported
- Works on metal
- No
- Waterproof level
- Rain and spray
- Commodity code (HS)
- 85235200
