The image is for illustrative purposes only and may not fully reflect the characteristics of the actual product.
Volume discounts
| Quantity | Unit discount | Unit price |
|---|---|---|
| 50 | 36.17% | €0.30 |
| 100 | 46.81% | €0.25 |
| 500 | 65.96% | €0.16 |
| 1000 | 74.47% | €0.12 |
| 5000 | 78.72% | €0.10 |
| 10000 | 80.85% | €0.09 |

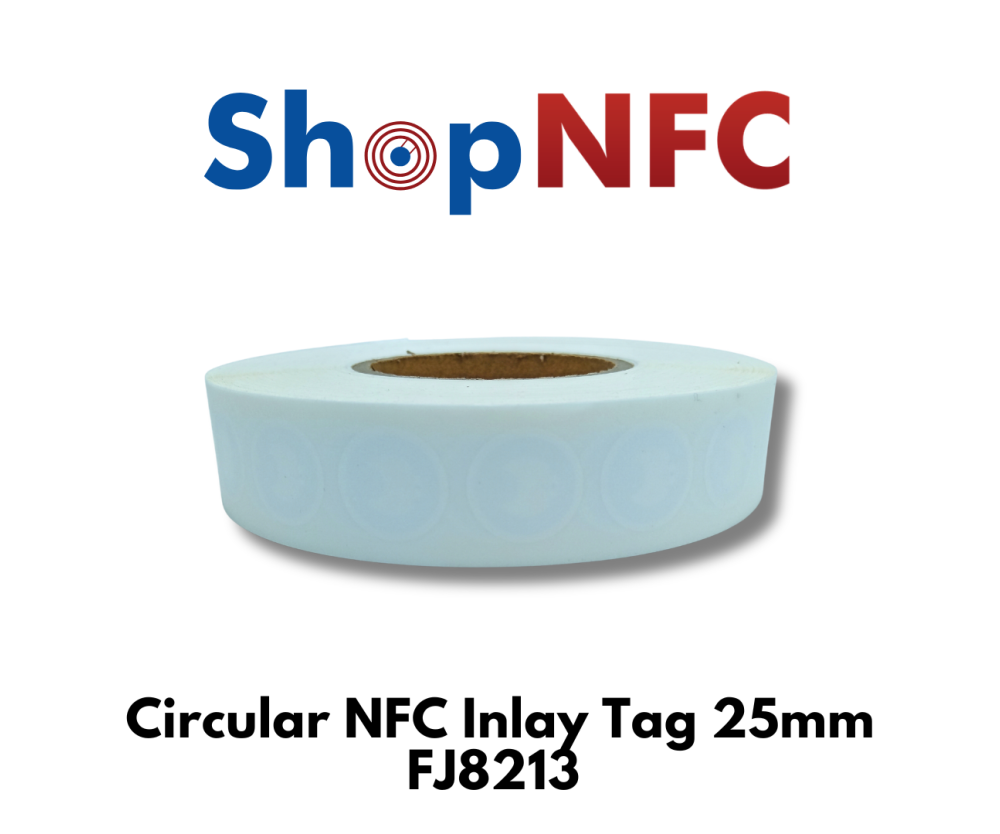

NFC Stickers FJ8213 25mm round - ISO 14443-A 144 byte
€0.47
Passive NFC tag in a 25 mm diameter circular inlay format. Operating on the FJ8213 chip with the ISO/IEC 14443 A protocol and 144 bytes of user memory, it is perfect for smart label integration, asset tracking, and precision digital marketing applications.
ST-FJ8213-25
Secure Payments
Delivery policy
Refund policy
Volume discounts
| Quantity | Unit discount | Unit price |
|---|---|---|
| 50 | 36.17% | €0.30 |
| 100 | 46.81% | €0.25 |
| 500 | 65.96% | €0.16 |
| 1000 | 74.47% | €0.12 |
| 5000 | 78.72% | €0.10 |
| 10000 | 80.85% | €0.09 |
This high-frequency (13.56 MHz) passive NFC tag delivers outstanding performance for short-range identification and data transfer. Engineered around the high-performance FJ8213 chip with a thin, efficient multi-layer structure, it combines an etched aluminum antenna on a 50um PET substrate within a compact circular inlay format. The 25 mm outer diameter makes it an ideal solution for seamless integration into packaging, product labels, and access control systems, ensuring high operational reliability and long-term data retention.
Technical Specifications
- IC Chip Model: FJ8213
- Operating Frequency: 13.56 MHz
- Standard Protocol: ISO/IEC 14443 A
- User Memory: 144 bytes
- Unique Identifier (UID): 7 bytes
- Operating Mode: Passive (battery-less)
- Outer Label Diameter: 25 mm (Radius 12.5 +/- 0.5 mm)
- Antenna Diameter: 21 mm (Radius 10.5 +/- 0.5 mm)
- Web Liner Width: 35.0 +/- 0.5 mm
- Vertical Pitch Spacing: 28.575 +/- 0.5 mm
- Antenna Base Material: 50um PET
- Antenna Manufacturing Process: Aluminum Etching
- Layer Structure: Surface Material, Dry Inlay, Adhesive, Silicon Paper (Glassine)
- IC Endurance: 100,000 programming cycles
- Data Retention: 10 years
- ESD Voltage Immunity: Max 2000V (2KV)
- Operating Temperature: -25 degrees Celsius to +50 degrees Celsius
- Operating Humidity: 20% to 80% RH (Non-condensing)
Data sheet
- NFC Standard
- ISO/IEC 14443-A
- Available memory
- 144 bytes
