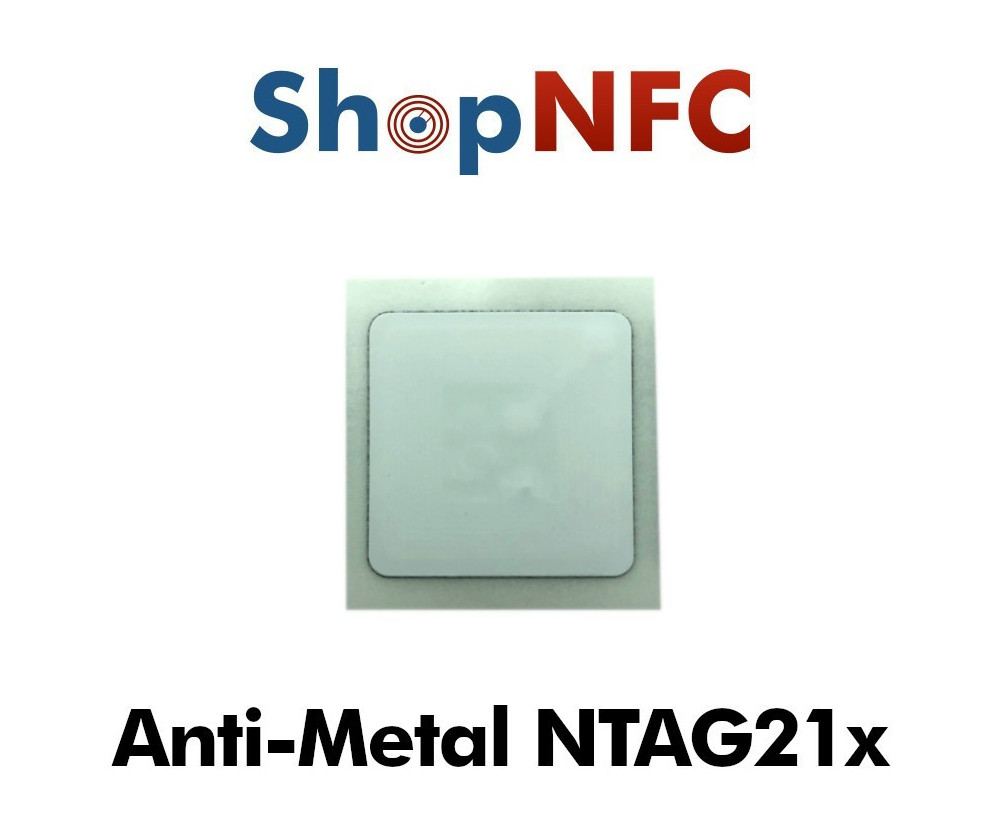

On-metal NFC tags have a very thin ferrite layer between the chip and the adhesive part, in order to isolate the magnetic field of any metal surfaces. As a result, they can only be read on the non-adhesive side, and can also be applied to metal surfaces.

Technical specifications

• Manufacturer: Confidex
• Product name: Beontag On-metal NFC 25x25 NTAG213
• Synthetic white surface, printable with resin ribbon
• Permanent adhesive for general use
• Applicable also on metal surfaces
• Dimensions: 25 x 25 mm
• Thickness: 0.45 mm
• Weight: < 1 g

Environmental resistance

• Operating temperature: -35°C ~ +85°C
• Storage temperature: -35°C ~ +85°C
• IP68 certification (total impermeability)
• Duration of adhesive: 1 year (in standard conditions 20°C / 50% RH)

Resistance to chemicals

No physical deterioration or performance after exposure to:

• 168 hours in salt water (10% salinity)
• 24 hours in sulfuric acid (10%, pH 2)
• 168 hours with engine oil
• 24 hours sodium hydroxide (10% NaOH, pH 13)
• 2 hours acetone

Contactless chip

• Manufacturer: NXP
• User memory: 144 bytes
• Operating frequency: 13.56 MHz
• Communication speed: 106 kbit/s
• Data retention: 10 years
• Read/write resistance: 100,000 cycles
• Compatible with all NFC smartphones

All our NFC tags are tested before shipment.

Tag Customization

We can print directly on this tag, in black and white or in full color. The printing time varies from 1 to 5 working days, depending on the quantities requested.

In both cases, a printing tolerance of about 1-2 mm should be considered. To achieve the best results, it is recommended to avoid:

• "Bleed" designs
• Graphic elements such as frames
• Important elements very close to the edge

Thermal Transfer Printing in Black

Thermal transfer printing is a printing technique that is performed directly on white labels. The print is in black, without shades. Thermal transfer printing is very durable and is designed to print an identifier, a QR code (even variable), or simple designs with a white background.

UV Color Printing

UV printing is a color printing technique that can be performed directly on white labels. The print is in CMYK and the result is semi-opaque. UV printed labels are supplied in strips (not on rolls). This method is ideal for small runs (typically under 500 pieces). For larger runs, we recommend Premium Express printing or offset printing. Contact us for more information.
