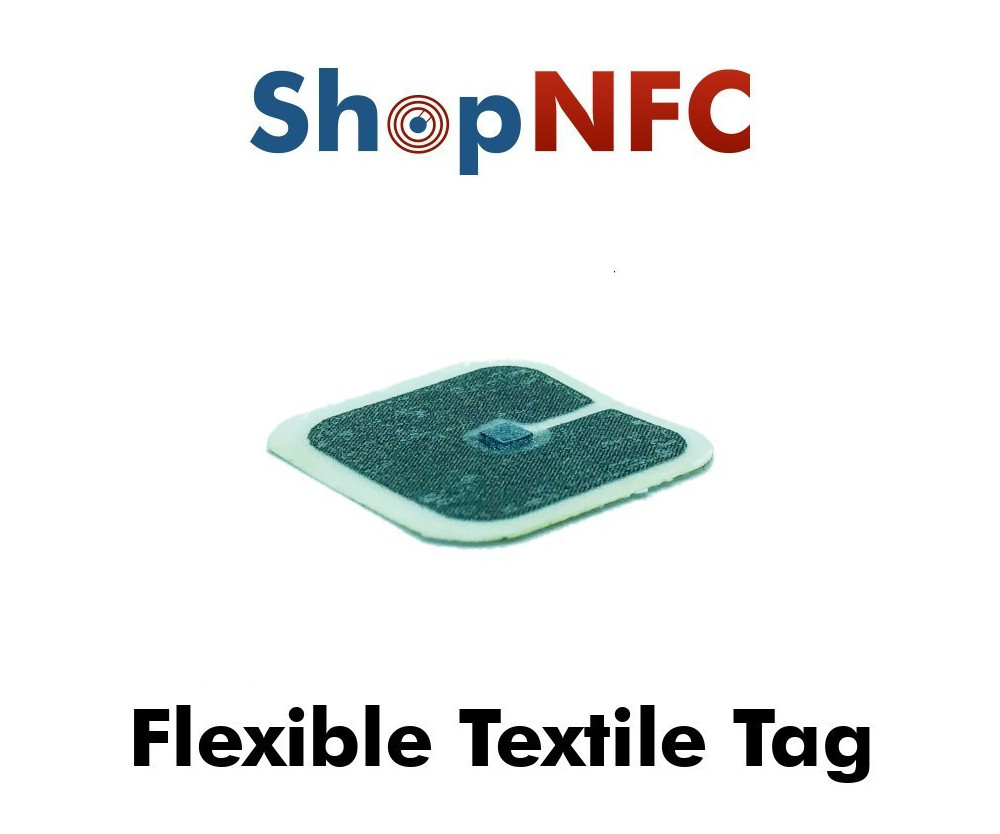

This NFC Tag is designed for textile applications. It differs from the other Tags due to the fact that it is not equipped with an antenna (typically fragile), but by a robust boost that amplifies the signal of the NFC chip. This boost is very durable and is able to withstand high temperatures and particular stresses, such as bending. Completely waterproof, it can be washed even at 90°C; it resists the spin cycle of the washing machine and can be ironed with a normal iron.

Technical features

• ThermoSetting (applicable with heat press, adheres completely to fabric)
• Material: TPU membrane
• Flexible and waterproof structure
• Chip size: 4x4mm
• Boost size: 25x25mm
• Tag size: 30x30mm
• Operating temperature: between -40° and 85°C

Application to clothing and accessories

The ThermoSetting NFC textile tag can be applied by a heat press, at 150°C for 15 seconds (average pressure 3-4 bar; use protective paper during application).

Certifications

• 150,000 bendings "Wamp Flex" certificate UNI EN ISO 5402-2:2015
• Aging certificate UNI EN 12749:2001_Mod.
• Dry cleaning certificate UNI EN ISO 3175-2:2010

NFC chip

The NFC chip of the Flexible Textile Tag is NXP NTAG212.

• Universal compatibility with all NFC smartphones
• Operating frequency: 13.56 MHz
• Available memory: 128 bytes
• NXP's digital signature of authenticity
• NFC Forum Type 2 / ISO 14443 A
